MAKO SHARK

Collaboration

The Mako Shark is the product of a distinguished collaboration between renowned designer Rıza Tansu and the accomplished shipbuilders at Tufan and Brothers Yachting Company. This partnership fuses avant-garde aesthetic sensibility with technical mastery, resulting in a vessel that seamlessly marries visual impact with exceptional build quality and performance standards.

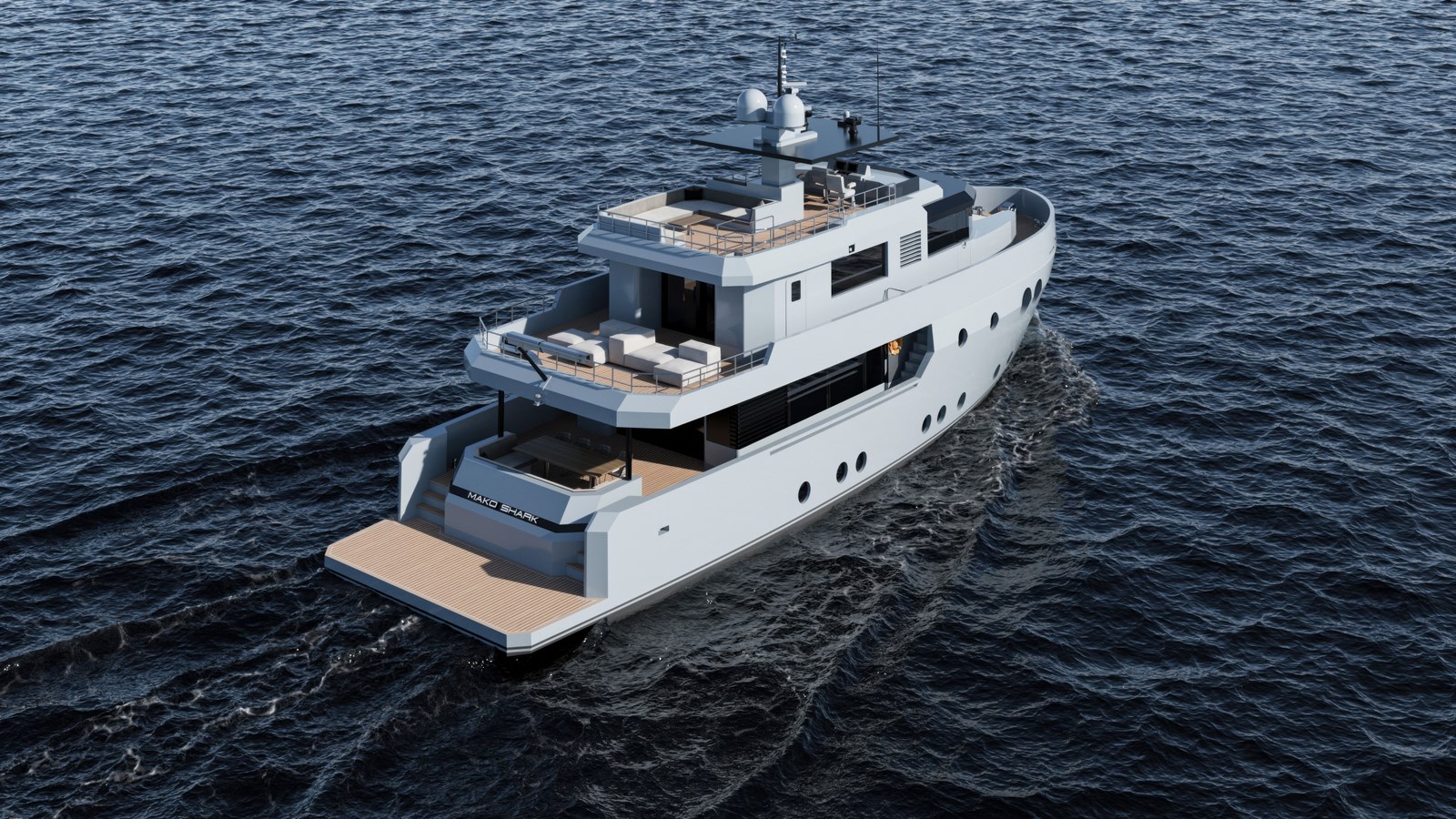

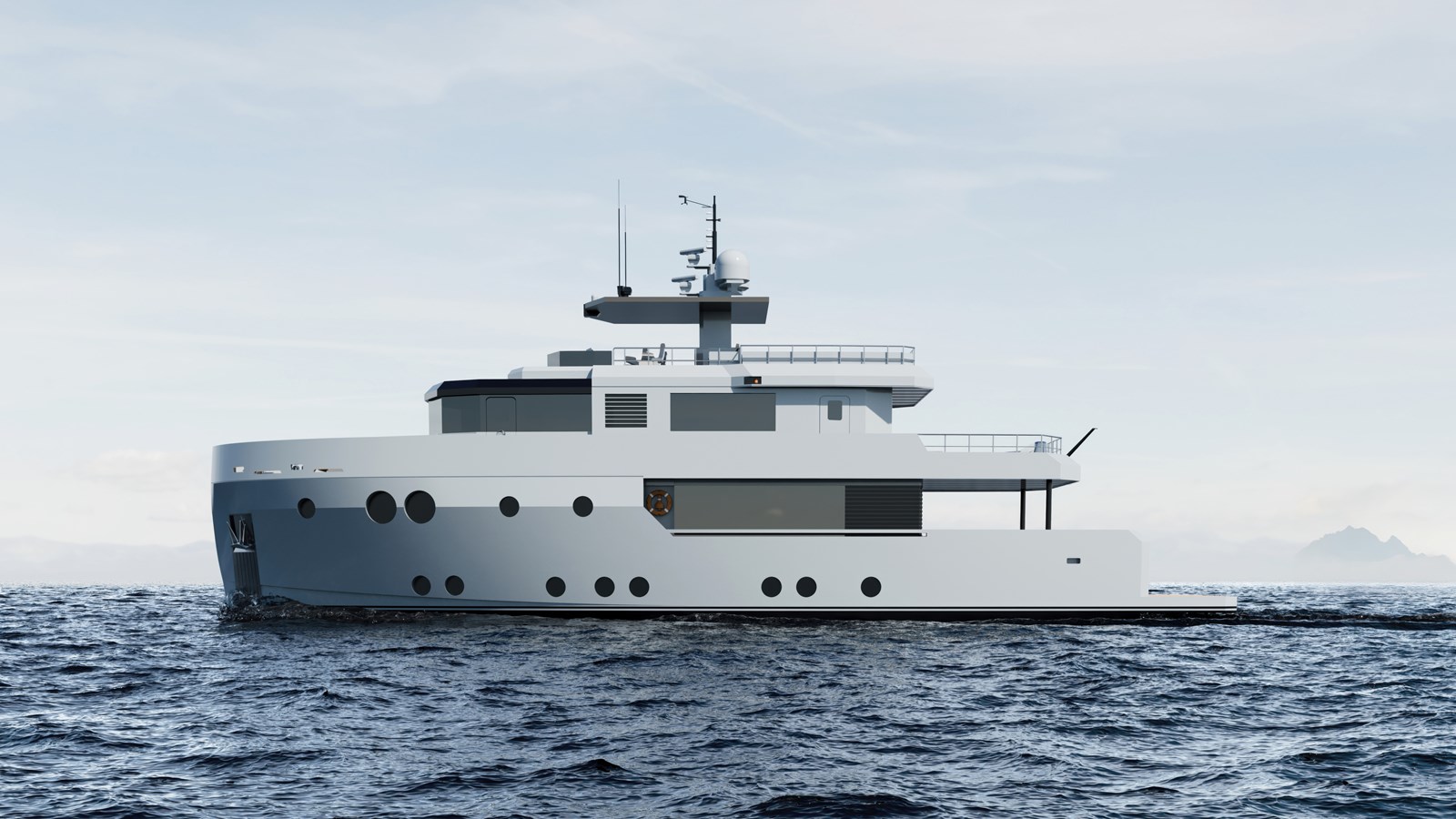

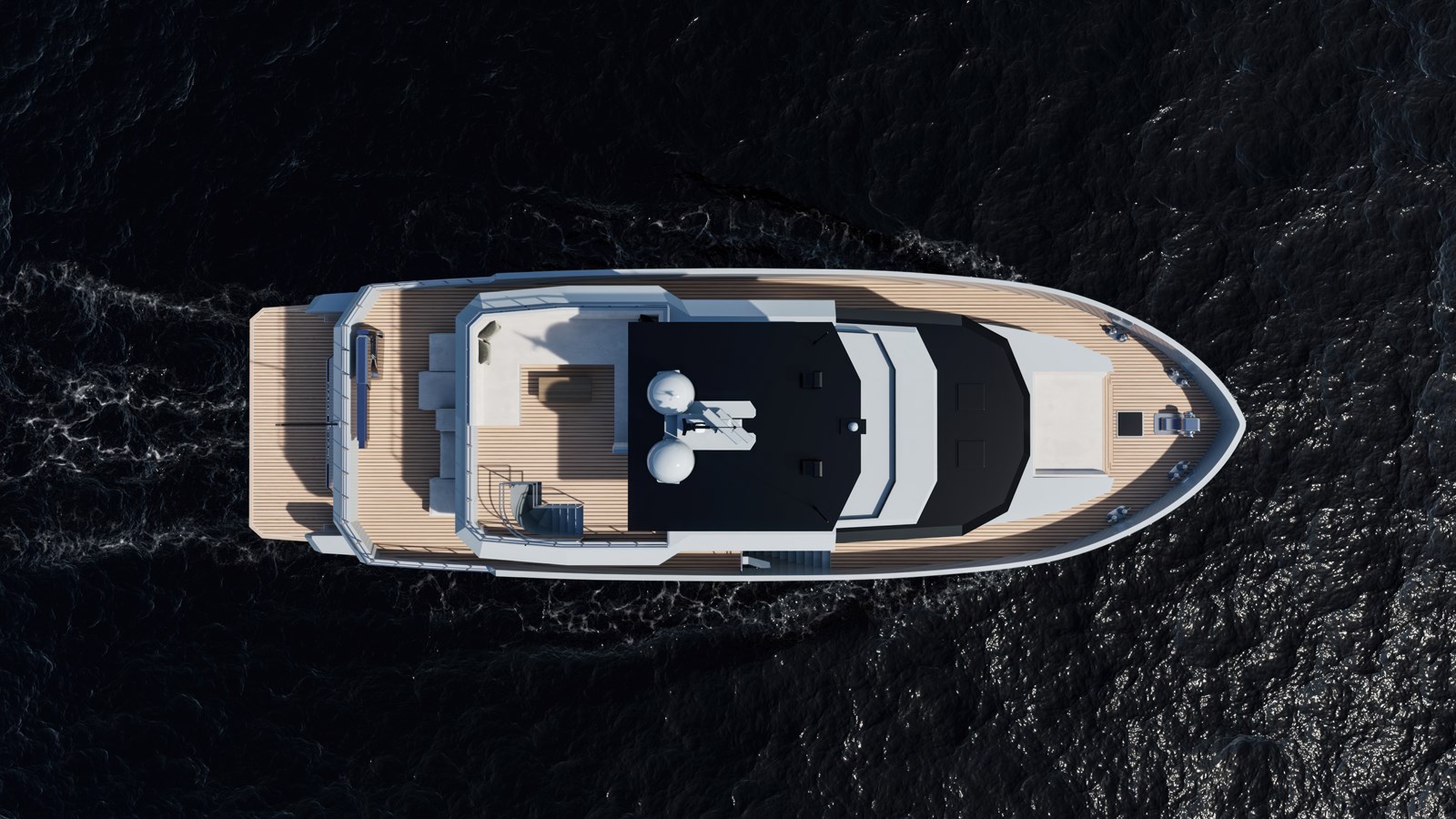

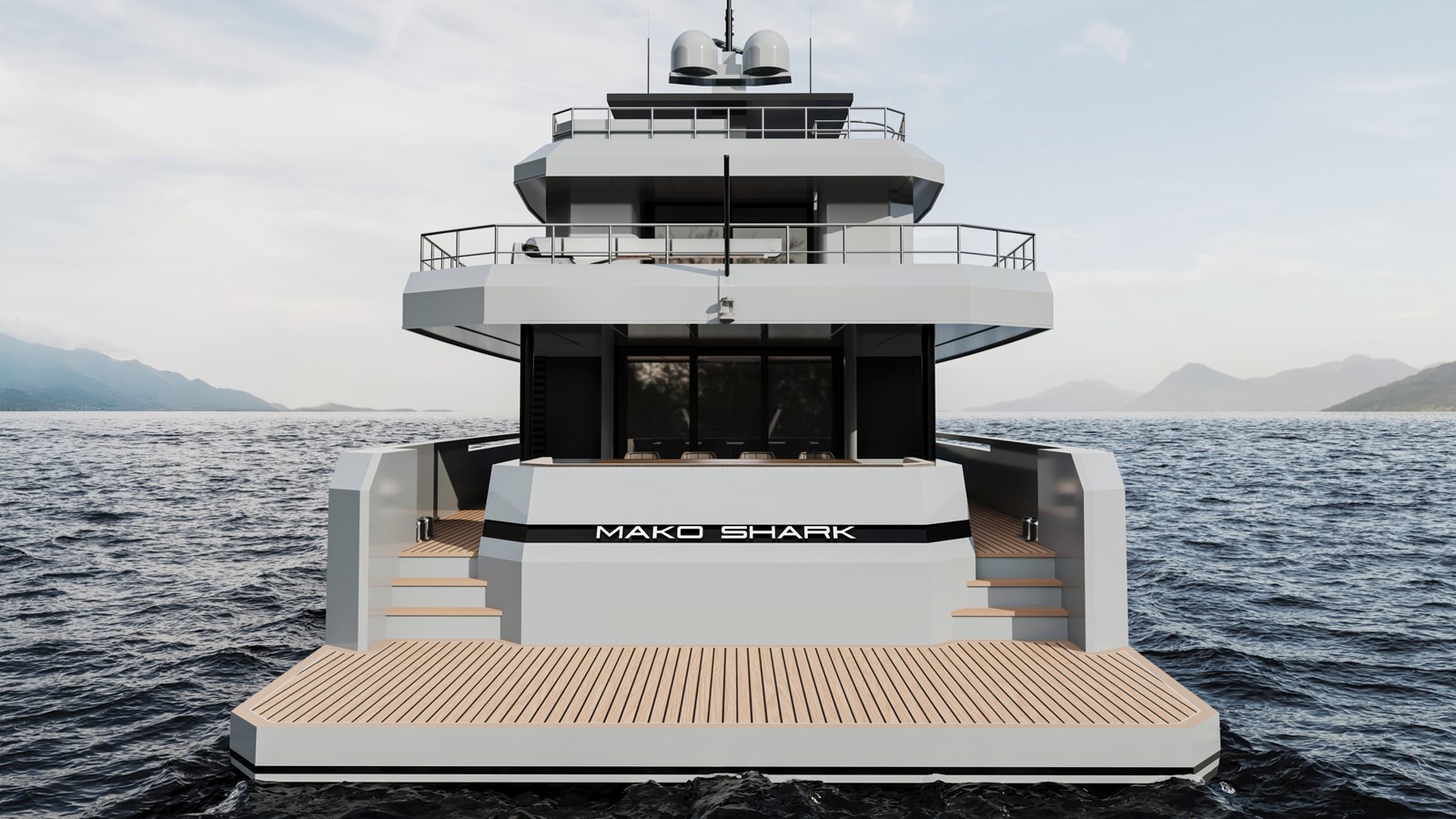

Exterior Design

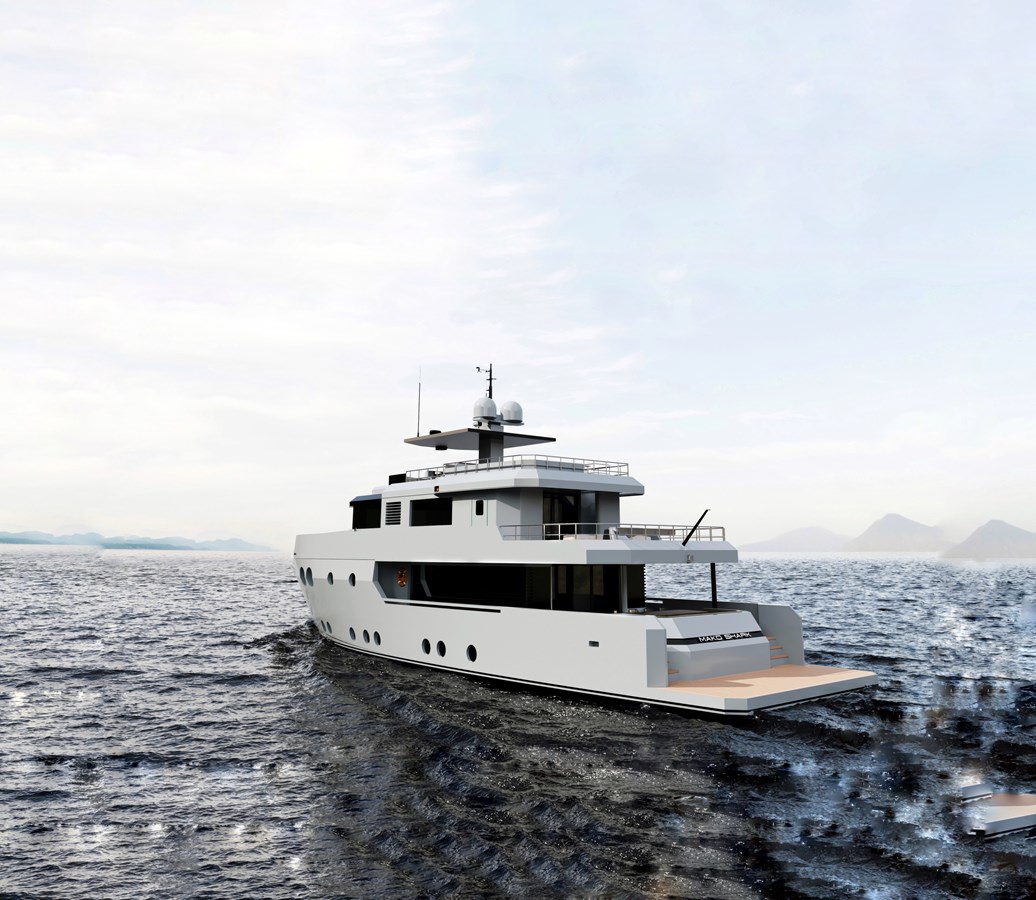

The Mako Shark showcases a bold, military-inspired exterior defined by angular lines and a commanding silhouette—hallmarks of Rıza Tansu’s iconic and serial award winning design language. Its assertive presence is both purposeful and visually arresting, reflecting the yacht’s expedition-ready ethos.

Interior Layout

The interior of the Mako Shark is conceived to balance refined luxury with functionality. Expansive living areas, meticulously crafted furnishings, and a thoughtfully considered layout create an ambiance of understated elegance and comfort, ideal for extended cruising.

Performance

The Mako Shark is engineered for transoceanic range and operational versatility. Her design emphasizes stability, endurance, and efficiency, making her exceptionally capable in diverse sea conditions. Her redundant systems allow her owners peace of mind while exploring the farthest corners of the oceans.

Inspiration and Concept

Rooted in the core principles of expedition, elegance, and purpose-driven design, the Mako Shark draws inspiration from its namesake—the agile and powerful mako shark. This concept is expressed through a sleek, muscular form and a naval architecture that prioritizes strength, adaptability, and precision handling across a variety of marine environments.

GENERAL INFORMATION

• Yacht Name: MAKO SHARK

• Builder: Tufan and Brothers

• Designer / Interior Concept: Rıza Tansu

• Type: Explorer Yacht

• Naval Architecture & Engineering: Tufan and Brothers

• Project Management: Tufan and Brothers

DIMENSIONS

• Length Overall (LOA): 26.5 m

• Waterline Length (LWL): 23.3 m

• Beam: 7.63 m

• Draft: 1.8 m

• Gross Tonnage (GRT): 200

• Full Load Displacement: 145 tonnes

CAPACITY

• Guests: 10

• Crew: 4–5

• Fuel Capacity: 22,500 liters

• Fresh Water: 2,500 liters

• Black / Grey Water: 2,000 liters each

• Range:

  • 3,000 nm @ 9 knots

  • 4,500 nm @ 8 knots

PERFORMANCE

• Cruising Speed: 10 knots

• Max Speed (1/4 Load): 13 knots

PROPULSION

• Engines: 2 x CUMMINS X15, 630 HP

• Gearboxes: ZF 1:3.000

• Propellers: 2 x 1100 mm 5-blade, Ni.Al.Br

• Bow Thruster: Side Power SH550

• Stabilizers: Humphree Zero Speed Fins

• Steering: Electro-Hydraulic

STRUCTURE

• Hull Material: Marine Grade Steel

• Superstructure: Marine Grade Aluminium

• Hull Type: Full Displacement

ELECTRICAL & POWER SYSTEM

• Generators: 2 x KOHLER 28 kW

• Battery System: 12 x Mastervolt Lithium-Ion (66 kW)

• Inverter/Chargers: 6 x Mastervolt Combi Pro 24/3500-100

• Shore Power Transformer: 30 kVa

COMFORT & INTERIOR

• Stabilization: Zero-speed fins & rockwool insulation

• Air Conditioning: CRUISAIR – 2 x 72,000 BTU units with multiple fan coils

• Watermaker: 1 x Horizon Seafari 225

• Jacuzzi Pump: TF TC25/1

SAFETY & FIRE SYSTEMS

• Fire Suppression: FM200 system in engine room

• Sprinklers: Automatic system throughout interior

• Bilge System: 400 lt/min Gianneschi

• Life Rafts: 2 x 6-person units

• Life Saving Equipment: Life jackets, buoys, fire detection, extinguishers

NAVIGATION & ELECTRONICS

• Radar: SIMRAD HALO 3

• Displays: 2 x SIMRAD NSO-16 EVO3

• Autopilot, GPS, AIS, VHF, Weather Station: SIMRAD Suite

• 4G Internet: TP-Link Deco Mesh

GALLEY & INTERIOR EQUIPMENT

• Appliances: Full Siemens package – oven, cooktop, hood, dishwasher, fridge, freezer

• Additional: Wine cooler, ice makers, minibar units

ENTERTAINMENT

• TVs: Samsung 32″ to 55″ in main areas and cabins

• Audio: Yamaha soundbars, JL Audio deck speakers, HELIX amplifiers

EXTERIOR & DECK

• Lighting: Foresti Suardi

• Gangway: Opacmare

• Deck Hatches & Doors: EMA watertight systems
